Cosine-AHF
Sineteng CAHF use elegant black color, concentrate on some countries with 50Hz and 60Hz power grid together. Only provide 50A and 100A module. Cabinet CAHF <=500A.
With the functions of 2 orders to 50orders harmonic compensation, from-1 to 1 reactive power compensation, three hase unbalance Control.

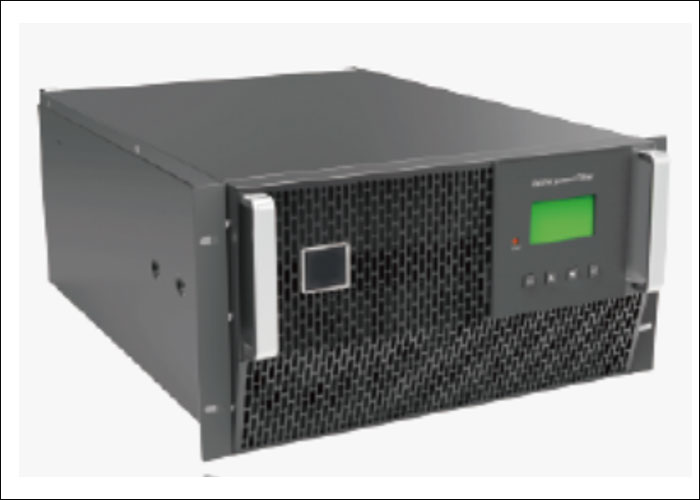

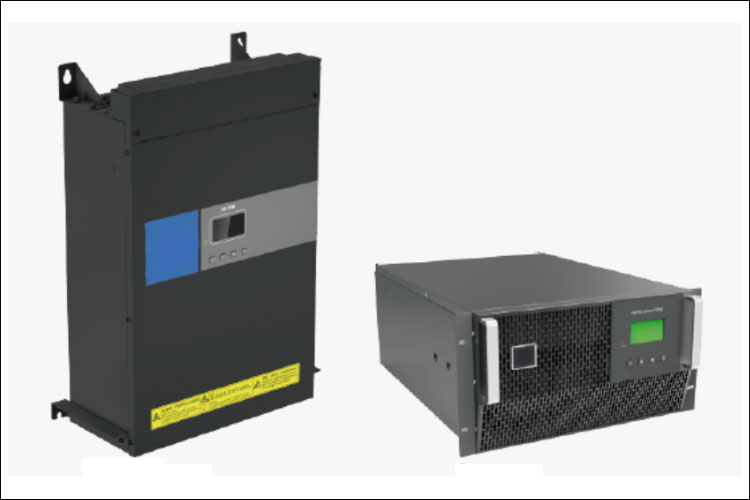

With wall mounted, rack mounted module.
Product Features

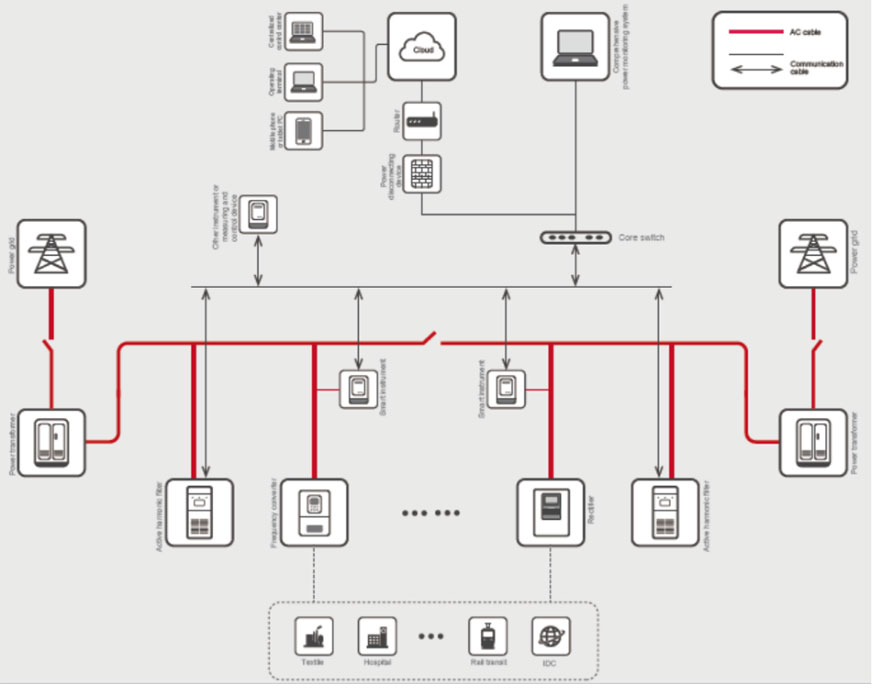

Application scenarios
- Low-voltage distribution network of industrial and mining enterprises
- Low-voltage distribution network of modern buildings such as medical
treatment, office, etc.
- Low-voltage distribution grid of data center and performance center
- Low-voltage distribution grid of urban rail transit
- Low-voltage distribution grid of aviation airport

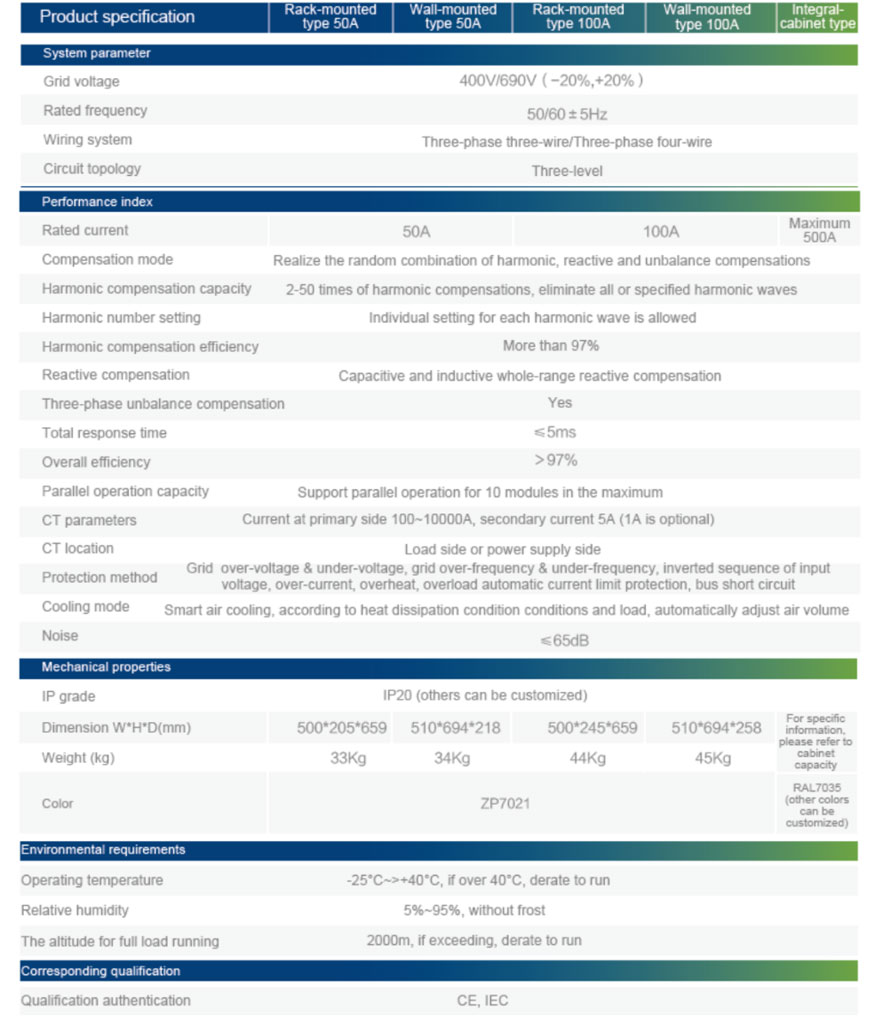

Product Parameters

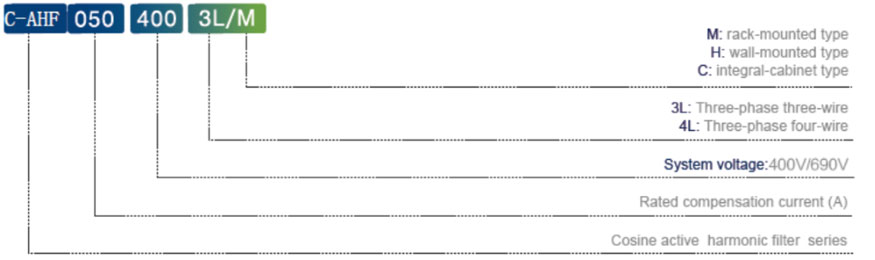

Description on product model selection
For example: C-AHF-050-400-4L/M shows the rack-mounted type module for Cosine-AHF series of active electric harmonic filter,
with adoption of three-phase four-wire, 50A rated compensation voltage and 400V voltage for rated wire.
Typical application field
Sineteng CAHF can be widely applied in various industries, especially more important for industrial field that the nonlinearity loading equipment is numerous.
Application field covers: automobile manufacturing, copper and iron melting, rail traffic, IDC industry, hospital, petrochemical, drilling platform, building and premises,
port and wharf, photovoltaic power generation, pharmacy, textile, military industry etc.

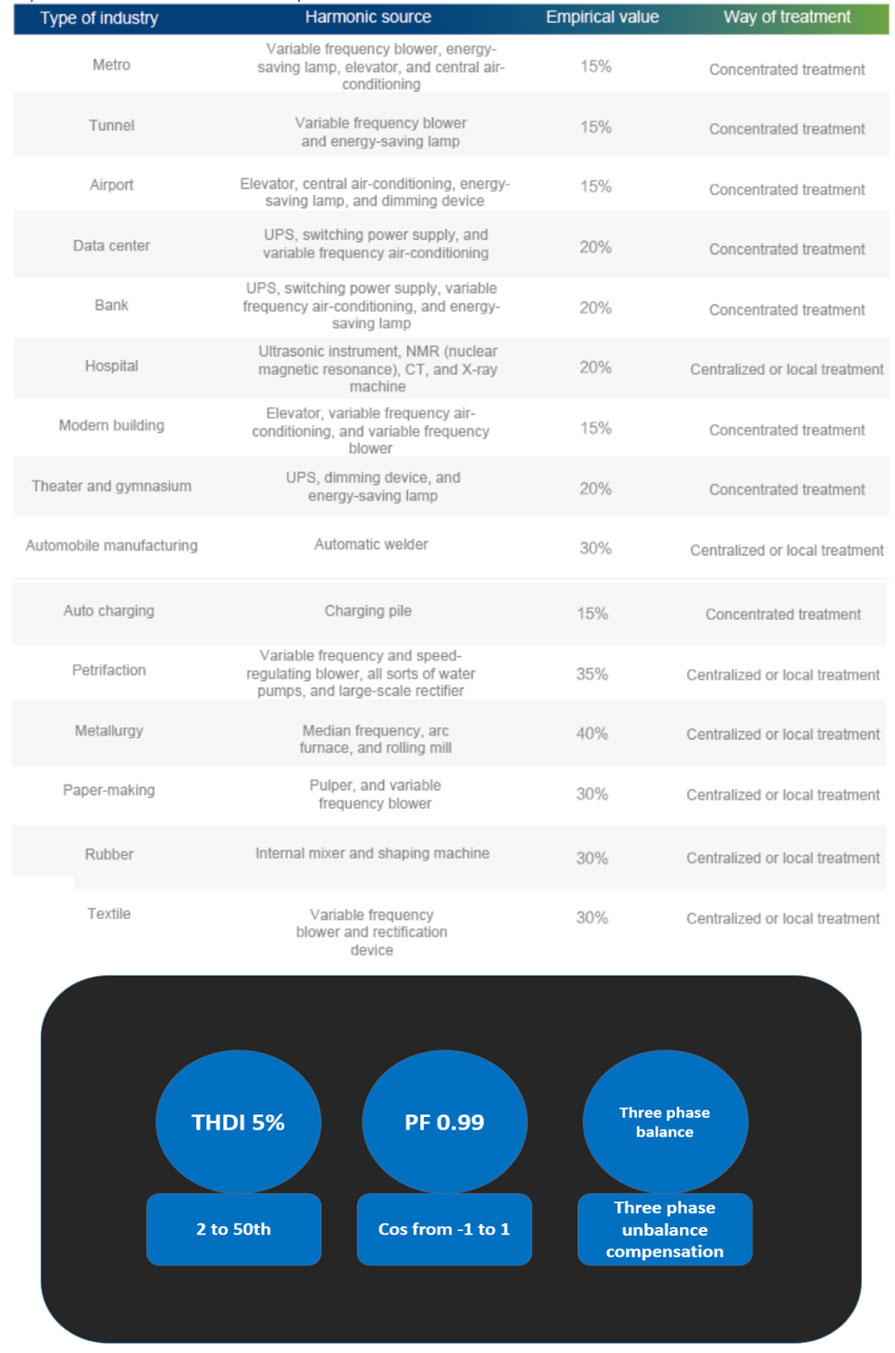

Empirical values and recommended treatment plans for harmonic current distortion rate in different industries.
